ZF-TT90
Specification：
| Machine Model | ZF-TT90 |
| Machine size L*W*H(mm) | 8600*1900*2095 |
| Packing speed | 100-140R/min |
| Product size range H*Ф(mm) | H (12-40)*Ф(40-80) |
| Power supply | 3P/380V/50HZ/10KW |
| Net weight | 1400KG |
Introduction
In modern industrial packaging processes, labeling precision, operational efficiency, and defect control are critical to maintaining product consistency and boosting packaging line productivity. Among a variety of labeling equipment, the PVC Electrical Tape Labeling Machine stands out as a specialized, high-speed labeling solution specifically designed for single-roll and multi-roll packaging of PVC electrical tape, stationery tape, and paper tape.
This intelligent and versatile labeling system not only guarantees precise label application but also significantly reduces labor costs by automating the packaging line’s downstream processes. Its ability to connect up to ten combined tape rolls and automatically detect and remove defective products makes it an ideal solution for tape manufacturers aiming for industrial-scale, high-efficiency production.
A PVC Electrical Tape Labeling Machine is an automatic labeling system tailored for applying shrinkable or adhesive labels onto individual or bundled rolls of PVC electrical tape. Unlike conventional labeling equipment, this machine accommodates the specific dimensions, shape, and characteristics of adhesive tape rolls, offering superior stability and label accuracy.
Beyond electrical tape, this equipment is compatible with stationery tape, masking tape, double-sided tape, and paper tape. With integrated automatic defect detection and rejection systems, this labeling machine is engineered to enhance packaging efficiency and improve final product quality control.

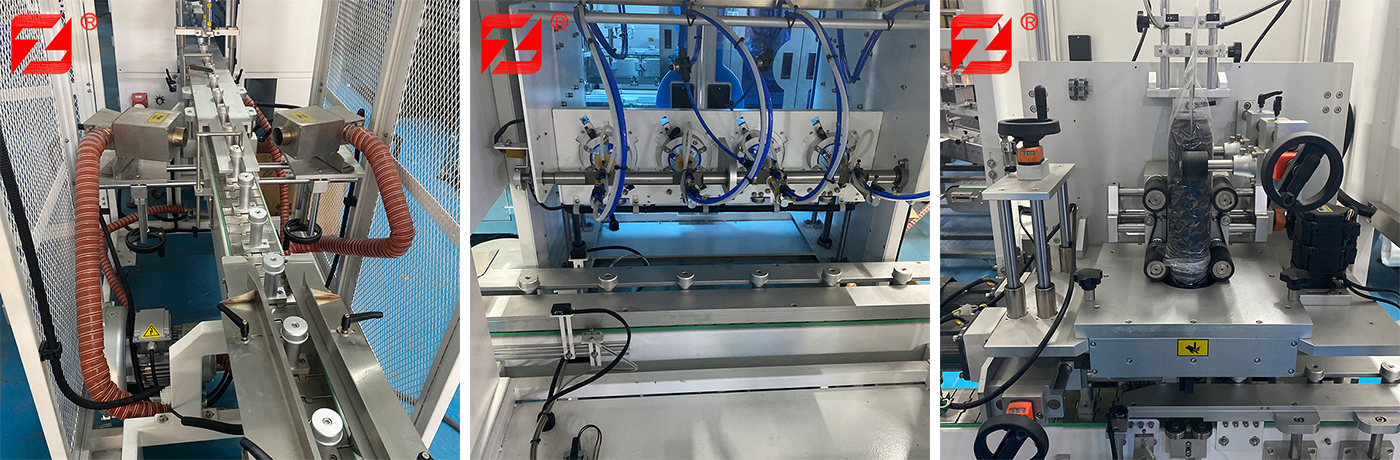

The labeling process begins by automatically feeding the tape rolls onto a conveyor. A positioning system aligns each tape roll precisely, followed by label feeding and application through a combination of photoelectric sensors and servo-driven mechanisms. The integrated double photoelectric eye system prevents incorrect or missed labeling, ensuring flawless product presentation.
Once labeled, products move through a heat shrink tunnel (for shrink sleeve labels) or a pressing device (for adhesive labels). Defective products are automatically detected and rejected, maintaining the integrity of the production line. The system can continuously package up to 10 combined rolls of tape, significantly increasing operational speed and reducing manual handling.
Features
Shenzhen Zhongfu Packaging Technology Co., Ltd., leveraging over 20 years of professional packaging machinery expertise, integrates advanced engineering into every detail of this machine. Its key performance features include:
1. Double Positioning Center Guide Post
A dual-center guide post design ensures extremely stable label delivery. Unlike traditional single-guide systems, this innovation prevents label deviation during high-speed operation, minimizing downtime and defective labels.
2. Quick-Change Die Height Adjustment
Thanks to the latest machine structure innovation, operators can adjust the die height without using a handwheel when switching between products of different diameters. This not only saves adjustment time but also simplifies the entire setup process, reducing operator workload and increasing packaging line flexibility.
3. Dual Photoelectric Eye Detection with Intelligent Parameter Auto-Adjustment
The machine is equipped with a dual photoelectric eye detection system to detect label position and product presence. It effectively prevents wrong labeling, missed labeling, and overlapping. Moreover, when adjusting line speed or label size, the system automatically recalibrates labeling parameters without manual intervention — making the operation highly intuitive, stable, and reliable.
4. Automatic Defective Product Rejection
The built-in rejection mechanism quickly isolates defective products to avoid contaminating the finished product batch, enhancing overall packaging quality control.
5. High-Speed, Multi-Roll Combination Packaging
With the ability to connect up to 10 tape rolls into a combined pack, this machine streamlines high-volume production processes and shortens packaging cycle times.
This machine is specifically designed for the following packaging applications:
PVC electrical tape single-roll labeling
Stationery tape labeling
Paper tape and masking tape packaging
Multi-roll combination packaging (up to 10 connected rolls)
Promotional or bulk packaging for retail display
Shrink sleeve labeling for branded tape packaging
It is widely used in the electrical insulation materials industry, office stationery supply manufacturing, adhesive products factories, and industrial and DIY hardware packaging sectors.
Integrating this machine into your packaging line brings numerous operational and economic benefits:
Boosts packaging efficiency and throughput
Reduces labor costs and operator workload
Enhances product appearance consistency and brand image
Prevents packaging errors and defects
Simplifies tape size changeover with minimal downtime
Improves downstream logistics through stable, uniform packaging
Established in 2002 and officially founded in Longgang District, Shenzhen in 2014, Shenzhen Zhongfu Packaging Technology Co., Ltd. is a leading manufacturer of industrial packaging equipment. With a second 10,000+ square meter factory in Huizhou added in 2024, the company delivers professional, high-efficiency, tailor-made packaging machinery to clients worldwide.
Core products include:
Shrink wrapping machines
Automatic sealing machines
Sleeve labeling machines
Carton sealing machines
Pillow packaging machines
PVC electrical tape labeling machines
Conveyors and packaging line accessories
With an emphasis on market-driven development and technological innovation, Zhongfu Packaging continues to pioneer solutions that improve packaging productivity and reduce operational costs for industrial manufacturers.
If your business demands a reliable, efficient, and intelligent solution for labeling single rolls or combined rolls of PVC electrical tape, stationery tape, or paper tape, the PVC Electrical Tape Labeling Machine from Shenzhen Zhongfu Packaging Technology Co., Ltd. is the optimal choice.
Equipped with advanced features such as dual positioning guides, quick-change die adjustments, photoelectric eye detection, and automatic defect rejection, it enhances product packaging appearance, increases line efficiency, and minimizes operational errors.
Contact us today for a customized solution that matches your production requirements.
